Why Cable Length Matters for a Pump VSD
On long pump runs, the cable between the motor and a Boray VSD can change how the drive and motor behave. The effect is not a single fixed limit; it depends on the installed drive, cable route, terminations, and the pump system. Models such as the BR600-P Solar Pump Inverter, FD500 Distributed Inverter, and BR110 Universal High-Performance Vector Inverter may be used in pump applications, so cable length should be checked as part of the whole installation.
Common Symptoms on Long Runs
Typical troubleshooting signs include unstable pump speed, drive faults after cable extension, motor heating, noisy operation, or intermittent tripping. These symptoms can come from the cable itself, poor terminations, cable routing near other power lines, or an installation that does not match the pump and drive arrangement. On solar pump sites using the BR600-P Solar Pump Inverter, also review the cable path because pump runs can be remote and exposed.
Practical Checks Before Blaming the VSD

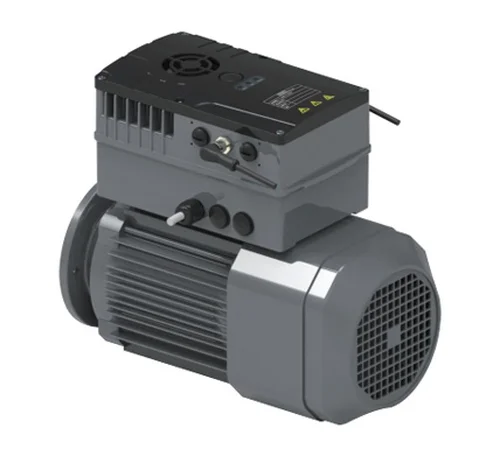

Start with the cable: confirm it is continuous, appropriately selected for the site, terminated securely, and routed away from heat, water, and mechanical damage. Check the motor connection, grounding path, and any cable joints. For a distributed pump installation using the FD500 Distributed Inverter, verify that the drive location, cable route, and motor location are treated as one system rather than separate components.
Designing for Long Pump Runs
For long runs, plan the cable route first, then choose the drive location. Keep the VSD close to the motor when possible, avoid unnecessary joints, and document the cable path for future maintenance. In vector-control pump installations using the BR110 Universal High-Performance Vector Inverter, a clean, stable motor connection can make troubleshooting easier because speed and torque behavior are more sensitive to wiring issues.
When to Escalate as a Boray Support Issue
If cable checks do not resolve the problem, collect the drive model, observed symptoms, cable route notes, and pump operating conditions before contacting support. For the BR600-P Solar Pump Inverter, FD500 Distributed Inverter, or BR110 Universal High-Performance Vector Inverter, support should be given the full installation picture, not only the drive name, because long pump runs often involve motor, cable, and site factors together.
